The Mate MT-WPIR02 is a wireless PIR motion detector with intelligent pet immunity, designed for professional indoor alarm systems. Featuring a 12-meter detection range, 90° detection angle, adjustable sensitivity, tamper protection, and powered by two CR123A lithium batteries, it provides accurate intrusion detection while reducing false alarms caused by pets up to 15kg.

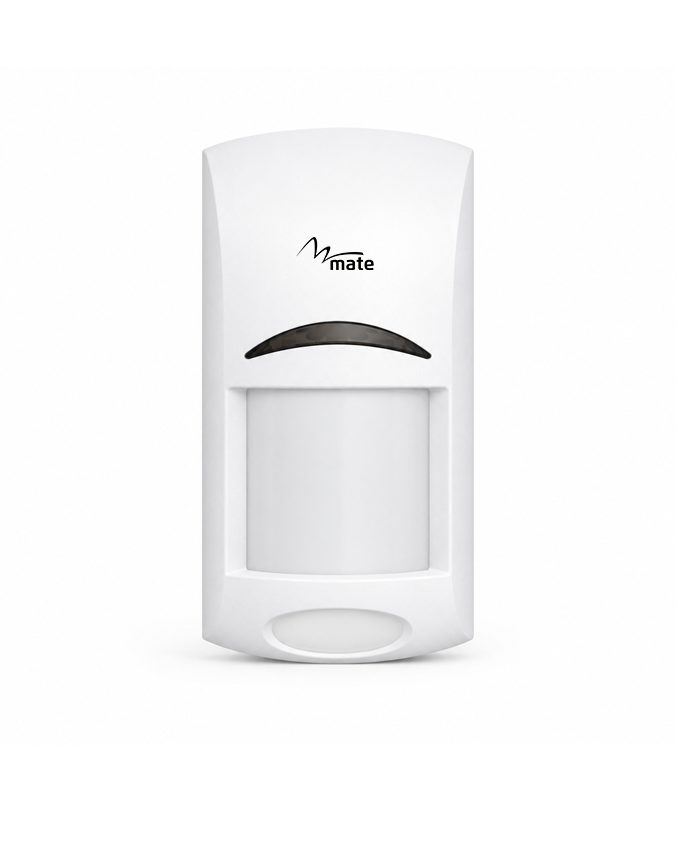

Mate MT-WPIR02 Wireless PIR Motion Detector with Pet Immunity
Mate MT-WPIR02 Wireless PIR Motion Detector with Pet Immunity
The Mate MT-WPIR02 is a professional wireless passive infrared (PIR) detector developed for reliable indoor intrusion detection. Equipped with intelligent pet immunity technology, it accurately distinguishes between human movement and small pets, significantly reducing unwanted false alarms.
Using advanced PIR sensing technology together with precision Fresnel optics, the detector provides a 12-meter detection distance and a 90° detection angle, making it suitable for homes, offices, retail stores, warehouses, and commercial buildings.
The detector supports adjustable sensitivity, pulse count configuration, alarm delay settings, and LED control, allowing installers to optimize performance for different environments.
Powered by two CR123A lithium batteries, the MT-WPIR02 delivers long operating life with ultra-low power consumption while maintaining stable wireless communication.
Key Features
- Wireless PIR Motion Detector
- Intelligent Pet Immunity
- Suitable for Pets up to 15kg
- Indoor Intrusion Detection
- 12 m Detection Range
- 90° Detection Angle
- Precision Fresnel Lens
- Adjustable Detection Sensitivity
- Adjustable Pulse Count
- Adjustable Alarm Delay
- LED Indicator Control
- Tamper Protection
- Low Power Consumption
- Powered by 2 × CR123A Lithium Batteries
- Surface Mount Installation
- Reliable Wireless Communication
- Fast Alarm Response
Intelligent Pet Immunity
The MT-WPIR02 uses advanced detection algorithms that help distinguish between human movement and small pets.
When installed according to the recommended guidelines, the detector can ignore pets weighing up to 15kg, reducing unnecessary alarm activations while maintaining reliable human detection.
Reliable Motion Detection
The precision PIR sensor provides fast and accurate detection with a 12-meter operating range and 90-degree coverage, making it suitable for protecting living rooms, offices, corridors, entrances, and other indoor spaces.
Advanced signal processing minimizes interference caused by environmental changes.
Flexible Configuration
The integrated DIP switches allow installers to configure the detector for different installation environments.
Adjustable settings include:
- High / Low Sensitivity
- Alarm Delay (5 seconds or 3 minutes)
- Pulse Count (2 or 3 pulses)
- LED Indicator On / Off
These options help optimize performance while reducing false alarms.
Long Battery Life
The detector operates using two CR123A 3V lithium batteries, providing stable wireless performance and low maintenance requirements.
Ultra-low standby current helps maximize battery life for long-term operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Mate MT-WPIR02 |
| Detector Type | Wireless PIR Motion Detector |
| Detection Technology | Passive Infrared (PIR) |
| Pet Immunity | Up to 15kg |
| Detection Distance | 12 m |
| Detection Angle | 90° |
| Recommended Installation Height | 2.0–2.4 m |
| Lens Type | Fresnel Lens |
| Power Supply | 2 × CR123A 3V Lithium Batteries |
| Wireless Frequency | 433 MHz / 868 MHz |
| Modulation | ASK |
| Standby Current | ≤10 μA |
| Alarm Current | ≤20 mA |
| Sensitivity | Adjustable |
| Alarm Delay | Adjustable |
| Pulse Count | Adjustable |
| LED Indicator | On / Off |
| Tamper Protection | Supported |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | ≤95% RH |
| Dimensions | 108 × 60 × 48 mm |
Recommended Applications
- Homes
- Apartments
- Villas
- Offices
- Retail Stores
- Warehouses
- Hotels
- Clinics
- Schools
- Indoor Alarm Systems
Package Includes
- 1 × Mate MT-WPIR02 Wireless PIR Motion Detector
- 2 × CR123A Lithium Batteries
- Mounting Accessories
- User Manual
