The Mate MT-ACFA02 is a fingerprint access control and time attendance terminal designed for offices, shops, warehouses, schools, and other commercial environments. It supports fingerprint, RFID card, and password verification, with real-time data transfer, USB report export, built-in Wi-Fi, TCP/IP communication, and simple door access control.

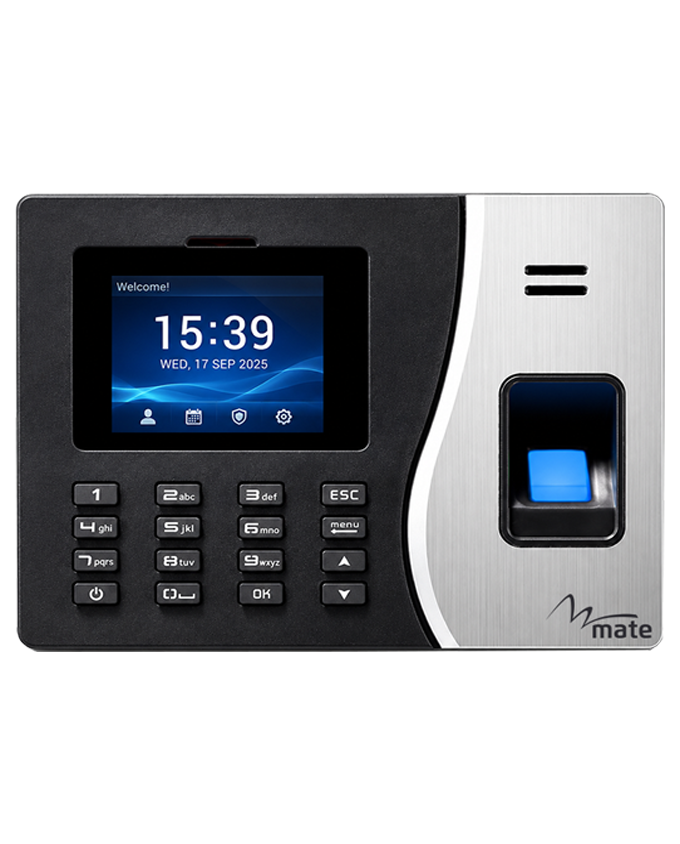

MT-ACFA02 Fingerprint Access Control and Time Attendance Terminal
Mate MT-ACFA02 Fingerprint Access Control and Time Attendance Terminal
The Mate MT-ACFA02 is a reliable time attendance recorder with integrated access control functions. It is designed to manage employee attendance, user verification, and basic door access from a single device.
The terminal uses a 600 dpi optical fingerprint sensor for accurate fingerprint identification and supports additional verification methods through RFID cards and passwords. Users can verify their identity using one method or a combination of fingerprint, card, and PIN.
The device works in both online and offline modes. Attendance records can be sent directly to a server in real time or exported using a USB flash drive. Built-in Wi-Fi and TCP/IP communication make installation and data management easier in offices and commercial buildings.
Its 2.4-inch color display, physical keypad, built-in backup battery, and support for up to 3,000 users make it suitable for everyday attendance and access control applications.
Key Features
- Fingerprint access control and time attendance
- 600 dpi optical fingerprint sensor
- Fingerprint, RFID card, and password verification
- Combined verification methods
- Up to 3,000 users
- Up to 100,000 attendance records
- Verification speed under 1 second
- 2.4-inch color display
- Built-in Wi-Fi
- TCP/IP network communication
- USB flash drive report export
- Real-time data transfer to server
- Built-in simple access control
- Built-in backup battery
- Voice and buzzer notifications
- Online and offline operation
- T9 keypad for direct user-name entry
Multiple Verification Methods
The Mate MT-ACFA02 supports flexible user authentication through:
- Fingerprint
- RFID card
- Password
- Fingerprint and card
- PIN and card
- Fingerprint, PIN, and card
This allows the administrator to select the verification method that best matches the required security level.
Real-Time Attendance Management
The terminal supports real-time data transfer to a connected server. Attendance records can be managed centrally through the network without manually collecting information from each device.
Where a network connection is unavailable, reports can also be downloaded using a USB flash drive.
Simple Access Control
The MT-ACFA02 includes basic access control functionality, allowing it to manage employee attendance and control door access from the same terminal.
It is suitable for locations that need a simple and practical solution without a complex access control system.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Mate MT-ACFA02 |
| Working Mode | Online / Offline |
| Verification Mode | 1:1 / 1:N |
| Fingerprint Sensor | 600 dpi optical sensor |
| User Capacity | 3,000 |
| Record Capacity | 100,000 |
| Verification Methods | Fingerprint, RFID card, password |
| Combined Verification | Fingerprint + Card, PIN + Card, Fingerprint + PIN + Card |
| Verification Speed | Less than 1 second |
| False Acceptance Rate | Less than 0.0001% |
| False Rejection Rate | Less than 0.01% |
| Display | 2.4-inch color display |
| Communication | Wi-Fi, USB Drive, Link, TCP/IP |
| Data Transfer | Real-time data push to server |
| Access Control | Built-in |
| Input Method | Physical keypad with T9 input |
| Language Support | English, Spanish, French, Turkish, Thai, Indonesian and others |
| Working Voltage | DC 12V |
| Working Current | 500 mA |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 20% to 60% |
| Backup Battery | Built-in |
| Alarm | Buzzer and voice |
Recommended Applications
- Offices
- Retail stores
- Warehouses
- Factories
- Schools
- Clinics
- Hotels
- Small businesses
- Commercial buildings
- Employee attendance systems
