The Mate MT-SGH01 is a next-generation smart home security gateway combining Wi-Fi, TCP/IP, 4G LTE, voice interaction, and intelligent automation into one powerful platform. Supporting up to 64 wireless zones, 9 ONVIF IP cameras, 128 smart devices, remote mobile control, and AI-powered automation, it is the ideal hub for modern smart homes and professional security systems.

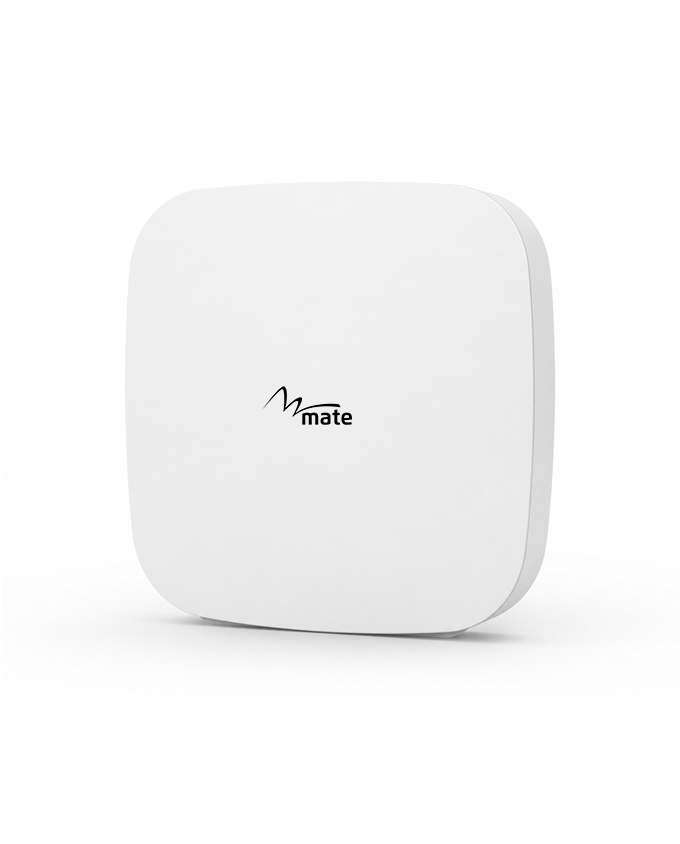

Mate MT-SGH01 Smart Home Security Gateway with 4G, Wi-Fi & Voice Control
Mate MT-SGH01 Smart Home Security Gateway
The Mate MT-SGH01 is an advanced smart security gateway designed to integrate intrusion detection, smart home automation, video surveillance, and remote system management into one intelligent platform.
Running on an embedded Linux operating system with a Dual-Core Cortex-A53 processor, the gateway supports Wi-Fi, Ethernet, and 4G LTE communication for reliable connectivity at all times.
Designed for professional residential and commercial installations, the MT-SGH01 supports wireless sensors, smart automation devices, IP cameras, voice interaction, cloud management, and remote monitoring via PC or smartphone.
Its built-in backup battery, intelligent scene automation, and support for multiple wireless technologies make it the central hub for a complete smart security ecosystem.
Key Features
- Embedded Linux Operating System
- Wi-Fi + Ethernet + 4G LTE Communication
- Dual-Core Cortex-A53 Processor
- Smart Home Security Gateway
- Full Voice Guidance
- RGB LED Status Indicator
- Remote Mobile App Control
- Web Browser Management
- PC Client Support
- Supports 64 Wireless Zones
- Supports 1 Wireless Siren
- Supports 1 Bus Line
- Supports Up to 9 ONVIF IP Cameras
- Supports 4-Channel Video Playback
- Supports Up to 128 Smart Devices
- Smart Scene Automation
- Scheduled Arm & Disarm
- Remote Arm & Disarm
- Live Audio Monitoring
- Two-Way Audio Communication
- Battery Monitoring
- Sensor Supervision
- Wireless Device Supervision
- 16 Smart Relay Outputs
- ONVIF Compatible
- HTML5 Web Interface
- Built-in Rechargeable Battery
- Power Failure Backup
- MicroSD Recording
- Contact ID & SIA Monitoring Protocol
Complete Smart Security Platform
The MT-SGH01 combines professional alarm management with advanced smart home automation.
Users can manage:
- Intrusion Detection
- Smart Home Devices
- Video Surveillance
- Alarm Notifications
- Automation Scenes
- Remote Access
All from a single intelligent platform.
Triple Network Communication
The gateway supports three communication methods simultaneously:
- Wi-Fi
- Ethernet (TCP/IP)
- 4G LTE
This ensures reliable communication and uninterrupted remote access.
Intelligent Automation
The MT-SGH01 supports intelligent scene automation based on security events, schedules, or user-defined conditions.
Examples include:
- Automatic lighting control
- Door lock automation
- Alarm-triggered actions
- Security scene activation
- Smart relay control
Up to 16 smart relay outputs are supported.
Video Surveillance Integration
The gateway supports:
- Up to 9 ONVIF IP Cameras
- 4-Channel Video Playback
- Remote Video Viewing
- SD Card Recording
- Video Alarm Verification
Users can review alarm events directly through the mobile app or web interface.
Remote Control Anywhere
The system supports complete remote management using:
- Android App
- iOS App
- PC Client
- HTML5 Web Browser
Users can arm or disarm the system, receive notifications, configure devices, monitor cameras, and manage automation from anywhere.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Mate MT-SGH01 |
| Product Type | Smart Home Security Gateway |
| Operating System | Embedded Linux |
| Processor | Dual-Core Cortex-A53 |
| Memory | 1 GB DDR |
| Communication | Wi-Fi + TCP/IP + 4G LTE |
| Mobile App | Android & iOS |
| Web Interface | HTML5 Browser |
| PC Software | Supported |
| Wireless Zones | 64 |
| Wireless Siren | 1 |
| Bus Devices | 1 Bus Line |
| Smart Devices | Up to 128 |
| Smart Relay Outputs | 16 |
| IP Camera Support | Up to 9 ONVIF Cameras |
| Video Playback | 4 Channels |
| Storage | MicroSD Card (Up to 128 GB) |
| Audio | Two-Way Audio |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Audio Codec | G.711A |
| Wireless Frequency | 433 / 868 / 915 MHz (FSK) |
| Network Port | 1 × RJ45 10/100 Mbps |
| SIM Card | Micro SIM |
| Backup Battery | 3.7V 4000mAh Rechargeable Lithium Battery |
| Backup Time | ≥8 Hours |
| Power Supply | DC 12V / 2.5A |
| Power Consumption | <10 mA Standby / <150 mA Alarm |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | <95% RH (Non-Condensing) |
| Dimensions | 150 × 150 × 34 mm |
| Installation | Wall Mount |
Recommended Applications
- Smart Homes
- Villas
- Apartments
- Offices
- Retail Stores
- Warehouses
- Hotels
- Schools
- Commercial Buildings
- Smart Building Automation
Package Includes
- 1 × Mate MT-SGH01 Smart Security Gateway
- Built-in Rechargeable Backup Battery
- Power Adapter
- Mounting Accessories
- User Manual
